SAE-Anschweiß-Gegenflansch - zöllig
|
 |
| Material: |
| 1.) |
ST 44.3 (FE 430) |
|
| 2.) |
1.4404
316 L |
rostfrei |
|
| Bestellbezeichnung: |
ST 44.3 |
1.4404 |
| - Flansch mit metrischem Gewinden |
AFS-...STM |
GF-x-...STM |
| - Flansch mit UNC-Gewinden |
GFS-...STU |
GF-x-...STU |
|
|
↓ Lochbild 3.000 P.S.I., Abmessungen
↓ Lochbild 3.000 P.S.I., M; Gewicht
↓ Lochbild 6.000 P.S.I., Abmessungen
↓ Lochbild 6.000 P.S.I., M; Gewicht |
| |
max.
Be-
triebs-
druck
kg/cm² |
SAE
Bau-
größe |
Typ |

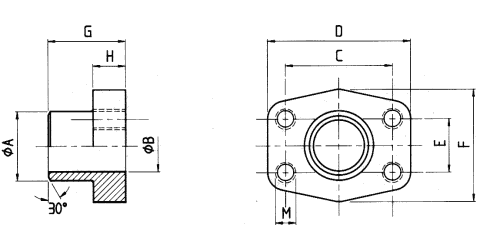

Abmessungen |
| A |
B |
C |
D |
E |
F |
G |
I |
| Lochbild 3.000 P.S.I. |
| 345 |
½" |
GFS
080 ST |
21,5 |
13 |
38,10 |
54 |
17,48 |
46 |
36 |
16 |
| 345 |
½" |
GFS 080
ST-038 |
17,5 |
13 |
38,10 |
54 |
17,48 |
46 |
36 |
16 |
| 345 |
¾" |
GFS
100 ST |
28,0 |
19 |
47,63 |
65 |
22,23 |
50 |
36 |
18 |
| 345 |
1" |
GFS
102 ST |
34,0 |
25 |
52,37 |
70 |
26,19 |
55 |
38 |
18 |
| 276 |
1¼" |
GFS
104 ST |
42,8 |
32 |
58,72 |
79 |
30,18 |
68 |
41 |
21 |
| 207 |
1½" |
GFS
106 ST |
48,6 |
38 |
69,85 |
93 |
35,71 |
78 |
44 |
25 |
| 207 |
2" |
GFS
108 ST |
61,0 |
51 |
77,77 |
102 |
42,88 |
90 |
45 |
25 |
| 172 |
2½" |
GFS
110 ST |
77,0 |
63 |
88,90 |
114 |
50,80 |
105 |
50 |
25 |
| 138 |
3" |
GFS
112 ST |
92,0 |
73 |
106,38 |
134 |
61,93 |
124 |
50 |
27 |
| 34 |
3½" |
GFS
114 ST |
103,0 |
89 |
120,65 |
152 |
69,85 |
136 |
48 |
27 |
| 34 |
4" |
GFS
116 ST |
115,5 |
99 |
130,18 |
162 |
77,77 |
146 |
48 |
27 |
|
|
| |
max.
Be-
triebs-
druck
kg/cm² |
SAE
Bau-
größe |
Typ |
M |
Gewicht
kg |
| metr. |
unc |
| Lochbild 3.000 P.S.I. |
| 345 |
½" |
GFS 080 ST |
M 8 |
5/16 |
0,25 |
| 345 |
½" |
GFS 080 ST-038 |
M 8 |
5/16 |
0,28 |
| 345 |
¾" |
GFS 100 ST |
M 10 |
3/8 |
0,39 |
| 345 |
1" |
GFS 102 ST |
M 10 |
3/8 |
0,46 |
| 276 |
1¼" |
GFS 104 ST |
M 10 |
7/16 |
0,66 |
| 207 |
1½" |
GFS 106 ST |
M 12 |
½ |
1,05 |
| 207 |
2" |
GFS 108 ST |
M 12 |
½ |
1,19 |
| 172 |
2½" |
GFS 110 ST |
M 12 |
½ |
1,40 |
| 138 |
3" |
GFS 112 ST |
M 16 |
5/8 |
2,15 |
| 34 |
3½" |
GFS 114 ST |
M 16 |
5/8 |
2,40 |
| 34 |
4" |
GFS 116 ST |
M 16 |
5/8 |
2,85 |
|
|
| |
max.
Be-
triebs-
druck
kg/cm² |
SAE
Bau-
größe |
Typ |
Abmessungen |
| A |
B |
C |
D |
E |
F |
G |
I |
| Lochbild 6.000 P.S.I. |
| 414 |
½" |
GFS 401
ST-012 |
21,5 |
13 |
40,49 |
54 |
18,24 |
46 |
36 |
16 |
| 414 |
½" |
GFS 401
ST-038 |
17,5 |
13 |
40,49 |
54 |
18,24 |
46 |
36 |
16 |
| 414 |
¾" |
GFS
402 ST |
28,0 |
19 |
50,80 |
71 |
23,80 |
55 |
35 |
21 |
| 414 |
1" |
GFS
403 ST |
34,0 |
25 |
57,15 |
79 |
27,76 |
68 |
41 |
21 |
| 414 |
1¼" |
GFS
404 ST |
42,8 |
32 |
66,68 |
93 |
31,75 |
78 |
44 |
25 |
| 414 |
1½" |
GFS
405 ST |
48,6 |
38 |
79,38 |
112 |
36,50 |
94 |
55 |
30 |
| 414 |
2" |
GFS
406 ST |
61,0 |
51 |
96,82 |
134 |
44,45 |
114 |
65 |
37 |
|
|
| |
max.
Be-
triebs-
druck
kg/cm² |
SAE
Bau-
größe |
Typ |
M |
Gewicht
kg |
| metr. |
unc |
| Lochbild 6.000 P.S.I. |
| 414 |
½" |
GFS 401 ST-012 |
M 8 |
5/16 |
0,26 |
| 414 |
½" |
GFS 401 ST-038 |
M 8 |
5/16 |
0,29 |
| 414 |
¾" |
GFS 402 ST |
M 10 |
3/8 |
0,50 |
| 414 |
1" |
GFS 403 ST |
M 12 |
7/16 |
0,76 |
| 414 |
1¼" |
GFS 404 ST |
M 14 |
½ |
1,20 |
| 414 |
1½" |
GFS 405 ST |
M 16 |
5/8 |
1,65 |
| 414 |
2" |
GFS 406 ST |
M 20 |
¾ |
2,45 |
|
|
Änderungen vorbehalten! |
|
|
|
|
|
