SAE-Flanschadaptor 90° - JIC - geschmiedet
|
 |
| Material: |
| 1.) |
ST 52.3 (FE 510) |
Oberfläche: gal. verzinkt, gelb chromatiert |
| 2.) |
1.4571
316T |
rostfrei |
|
| Bestellbezeichnung: |
ST 52.3 |
1.4571 |
| - nur 90° Zwischenstück |
WFG-... |
WFG-x-... |
| - inkl. Halbschalen, Schraubensatz (metrisch) und O-Ring |
WFG-...M |
WFG-x-...Mx |
| - inkl. Halbschalen, Schraubensatz (UNC) und O-Ring |
WFG-...U |
WFG-x-...Ux |
|
|
↓ Lochbild 3.000 P.S.I., Abmessungen
↓ Lochbild 3.000 P.S.I., Schrauben M; Gewicht
↓ Lochbild 6.000 P.S.I., Abmessungen
↓ Lochbild 6.000 P.S.I., Schrauben M; Gewicht |
| |
max.
Be-
triebs-
druck
kg/cm² |
SAE
Bau-
größe |
Typ |

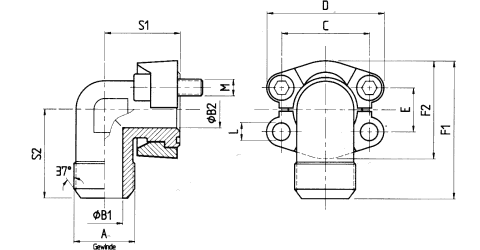

Abmessungen |
| A |
B1 |
B2 |
C |
D |
E |
F1 |
F2 |
S1 |
S2 |
L |
| Lochbild 3.000 P.S.I. |
| 345 |
½" |
WFG 3001
JIC ¾ |
¾-16 JIC |
9,9 |
13 |
38,10 |
54 |
17,48 |
60,8 |
45,6 |
38 |
38 |
8,5 |
| 345 |
½" |
WFG 3001
JIC 7/8 |
7/8-14 JIC |
12,3 |
13 |
38,10 |
54 |
17,48 |
60,8 |
45,6 |
38 |
38 |
8,5 |
| 345 |
¾" |
WFG 3002
JIC 7/8 |
7/8-14 JIC |
12,3 |
19 |
47,63 |
65 |
22,23 |
70,9 |
51,8 |
42 |
45 |
10,5 |
| 345 |
¾" |
WFG 3002
JIC 1 1/16 |
1 1/16-12 JIC |
15,5 |
19 |
47,63 |
65 |
22,23 |
70,9 |
51,8 |
42 |
45 |
10,5 |
| 345 |
¾" |
WFG 3002
JIC 1 5/16 |
1 5/16-12 JIC |
21,5 |
19 |
47,63 |
65 |
22,23 |
70,9 |
51,8 |
42 |
45 |
10,5 |
| 345 |
1" |
WFG 3003
JIC 1 1/16 |
1 1/16-12 JIC |
15,5 |
24 |
52,37 |
70 |
26,19 |
79,2 |
58,4 |
45 |
50 |
10,5 |
| 345 |
1" |
WFG 3003
JIC 1 5/16 |
1 5/16-12 JIC |
21,5 |
24 |
52,37 |
70 |
26,19 |
79,2 |
58,4 |
45 |
50 |
10,5 |
| 345 |
1" |
WFG 3003
JIC 1 5/8 |
1 5/8-12 JIC |
27,5 |
24 |
52,37 |
70 |
26,19 |
79,2 |
58,4 |
45 |
50 |
10,5 |
| 276 |
1¼" |
WFG 3004
JIC 1 5/16 |
1 5/16-12 JIC |
21,5 |
31 |
58,72 |
79 |
30,18 |
85,3 |
72,6 |
50 |
59 |
(*1 |
| 276 |
1¼" |
WFG 3004
JIC 1 5/8 |
1 5/8-12 JIC |
27,5 |
31 |
58,72 |
79 |
30,18 |
85,3 |
72,6 |
50 |
59 |
(*1 |
| 207 |
1½" |
WFG 3005
JIC 1 5/8 |
1 5/8-12 JIC |
27,5 |
38 |
69,85 |
94 |
35,71 |
117,1 |
82,2 |
76 |
76 |
13,5 |
| 207 |
1½" |
WFG 3005
JIC 1 7/8 |
1 7/8-12 JIC |
33,0 |
38 |
69,85 |
94 |
35,71 |
117,1 |
82,2 |
76 |
76 |
13,5 |
|
|
| *1) = wahlweise 10,5, 12,5 oder 12,0 |
| |
max.
Be-
triebs-
druck
kg/cm² |
SAE
Bau-
größe |
Typ |
Schrauben M |
Gewicht
kg |
| metr. |
unc |
| Lochbild 3.000 P.S.I. |
| 345 |
½" |
WFG 3001 JIC ¾ |
M 8x30 |
5/16 x 1¼ |
0,34 |
| 345 |
½" |
WFG 3001 JIC 7/8 |
M 8x30 |
5/16 x 1¼ |
0,40 |
| 345 |
¾" |
WFG 3002 JIC 7/8 |
M 10x35 |
3/8 x 1½ |
0,60 |
| 345 |
¾" |
WFG 3002 JIC 1 1/16 |
M 10x35 |
3/8 x 1½ |
0,63 |
| 345 |
¾" |
WFG 3002 JIC 1 5/16 |
M 10x35 |
3/8 x 1½ |
0,66 |
| 345 |
1" |
WFG 3003 JIC 1 1/16 |
M 10x35 |
3/8 x 1½ |
0,80 |
| 345 |
1" |
WFG 3003 JIC 1 5/16 |
M 10x35 |
3/8 x 1½ |
0,85 |
| 345 |
1" |
WFG 3003 JIC 1 5/8 |
M 10x35 |
3/8 x 1½ |
0,89 |
| 276 |
1¼" |
WFG 3004 JIC 1 5/16 |
(*2 |
7/16 x 1½ |
1,16 |
| 276 |
1¼" |
WFG 3004 JIC 1 5/8 |
(*2 |
7/16 x 1½ |
1,27 |
| 207 |
1½" |
WFG 3005 JIC 1 5/8 |
M 12x40 |
½ x 1½ |
1,90 |
| 207 |
1½" |
WFG 3005 JIC 1 7/8 |
M 12x40 |
½ x 1½ |
2,05 |
|
|
| *2) = wahlweise M 10x30 oder M 12x40 |
| |
max.
Be-
triebs-
druck
kg/cm² |
SAE
Bau-
größe |
Typ |
Abmessungen |
| A |
B1 |
B2 |
C |
D |
E |
F1 |
F2 |
S1 |
S2 |
L |
| Lochbild 6.000 P.S.I. |
| 414 |
½" |
WFG 6001
JIC ¾ |
¾-16 JIC |
9,9 |
13 |
40,49 |
56 |
18,24 |
61,6 |
47,2 |
39 |
38 |
8,5 |
| 414 |
½" |
WFG 6001
JIC 7/8 |
7/8-14 JIC |
12,3 |
13 |
40,49 |
56 |
18,24 |
61,6 |
47,2 |
39 |
38 |
8,5 |
| 414 |
¾" |
WFG 6002
JIC 7/8 |
7/8-14 JIC |
12,3 |
17 |
50,80 |
71 |
23,80 |
78 |
60 |
48 |
48 |
10,5 |
| 414 |
¾" |
WFG 6002
JIC 1 1/16 |
1 1/16-12 JIC |
15,5 |
17 |
50,80 |
71 |
23,80 |
78 |
60 |
48 |
48 |
10,5 |
| 414 |
¾" |
WFG 6002
JIC 1 5/16 |
1 5/16-12 JIC |
21,5 |
17 |
50,80 |
71 |
23,80 |
78 |
60 |
48 |
48 |
10,5 |
| 414 |
1" |
WFG 6003
JIC 1 1/16 |
1 1/16-12 JIC |
15,5 |
24 |
57,15 |
81 |
27,76 |
99 |
69,9 |
60 |
60 |
(*3 |
| 414 |
1" |
WFG 6003
JIC 1 5/16 |
1 5/16-12 JIC |
21,5 |
24 |
57,15 |
81 |
27,76 |
99 |
69,9 |
60 |
60 |
(*3 |
| 414 |
1" |
WFG 6003
JIC 1 5/8 |
1 5/8-12 JIC |
27,5 |
24 |
57,15 |
81 |
27,76 |
99 |
69,9 |
60 |
60 |
(*3 |
| 414 |
1¼" |
WFG 6004
JIC 1 5/16 |
1 5/16-12 JIC |
21,5 |
30 |
66,68 |
95 |
31,75 |
115,5 |
77,2 |
68 |
68 |
(*4 |
| 414 |
1¼" |
WFG 6004
JIC 1 5/8 |
1 5/8-12 JIC |
27,5 |
30 |
66,68 |
95 |
31,75 |
115,5 |
77,2 |
68 |
68 |
(*4 |
| 414 |
1¼" |
WFG 6004
JIC 1 7/8 |
1 7/8-12 JIC |
33,0 |
30 |
66,68 |
95 |
31,75 |
115,5 |
77,2 |
68 |
68 |
(*4 |
| 414 |
1½" |
WFG 6005
JIC 1 5/8 |
1 5/8-12 JIC |
27,5 |
32 |
79,38 |
113 |
36,50 |
133 |
95 |
76 |
76 |
16,5 |
| 414 |
1½" |
WFG 6005
JIC 1 7/8 |
1 7/8-12 JIC |
33,0 |
32 |
79,38 |
113 |
36,50 |
133 |
95 |
76 |
76 |
16,5 |
|
|
*3) = wahlweise 12,0 oder 12,5
*4) = wahlweise 13,5 oder 14,5 |
| |
max.
Be-
triebs-
druck
kg/cm² |
SAE
Bau-
größe |
Typ |
Schrauben M |
Gewicht
kg |
| metr. |
unc |
| Lochbild 6.000 P.S.I. |
| 414 |
½" |
WFG 6001 JIC ¾ |
M 8x30 |
5/16 x 1¼ |
0,37 |
| 414 |
½" |
WFG 6001 JIC 7/8 |
M 8x35 |
5/16 x 1¼ |
0,45 |
| 414 |
¾" |
WFG 6002 JIC 7/8 |
M 10x35 |
3/8 x 1½ |
0,88 |
| 414 |
¾" |
WFG 6002 JIC 1 1/16 |
M 10x35 |
3/8 x 1½ |
0,97 |
| 414 |
¾" |
WFG 6002 JIC 1 5/16 |
M 10x35 |
3/8 x 1½ |
1,02 |
| 414 |
1" |
WFG 6003 JIC 1 1/16 |
M 12x45 |
7/16 x 1¾ |
1,46 |
| 414 |
1" |
WFG 6003 JIC 1 5/16 |
M 12x45 |
7/16 x 1¾ |
1,57 |
| 414 |
1" |
WFG 6003 JIC 1 5/8 |
M 12x45 |
7/16 x 1¾ |
1,70 |
| 414 |
1¼" |
WFG 6004 JIC 1 5/16 |
M 14x50 |
½ x 1¾ |
2,20 |
| 414 |
1¼" |
WFG 6004 JIC 1 5/8 |
M 14x50 |
½ x 1¾ |
2,30 |
| 414 |
1¼" |
WFG 6004 JIC 1 7/8 |
M 14x50 |
½ x 1¾ |
2,45 |
| 414 |
1½" |
WFG 6005 JIC 1 5/8 |
M 16x55 |
5/8 x 2 |
3,08 |
| 414 |
1½" |
WFG 6005 JIC 1 7/8 |
M 16x55 |
5/8 x 2 |
3,45 |
|
|
Änderungen vorbehalten! |
|
|
|
|
|
