Vierkant-Anschweißflansch ND 400
|
 |
| Ausführung: |
| Schweißfugenform nach DIN 2559 |
|
| Material: |
| Vierkant |
ST 52.3 / C45 |
| Stutzen |
ST 52.3 / C15 |
| auch in 1.4571 lieferbar |
|
| Bestellbezeichnung: |
|
| - nur Anschlussflansch |
VKA 43.../... |
| - Flanschkupplung |
VKK 41.../... |
| - inkl. Schraubensatz und O-Ring |
.../...M |
|
|

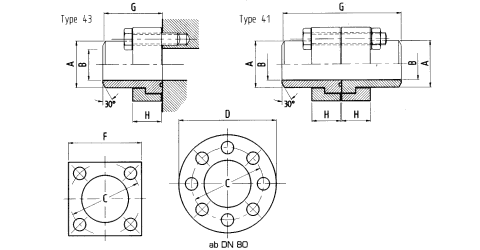

↓ Anschlussflansch, Abmessungen
↓ Anschlussflansch, O-Ring; Schrauben M; Gewicht
↓ Flanschkupplung, Abmessungen
↓ Flanschkupplung, O-Ring; Schrauben M; Gewicht |
| |
max.
Be-
triebs-
druck
kg/cm² |
DN |
Typ |
Abmessungen |
| A |
B |
C |
F |
D |
H |
G |
| Anschlussflansch |
| 400 |
10 |
VKA 43-10/17 |
17,2x3,6 |
10 |
44 |
50 |
|
20 |
43 |
| 400 |
16 |
VKA 43-16/26 |
26,9x5,6 |
16 |
54 |
60 |
|
20 |
50 |
| 400 |
20 |
VKA 43-20/33 |
33,7x6,3 |
21 |
64 |
70 |
|
20 |
56 |
| 400 |
25 |
VKA 43-25/42 |
42,7x8,0 |
26 |
72 |
80 |
|
25 |
64 |
| 400 |
32 |
VKA 43-32/60 |
60,3x12,5 |
35 |
98 |
100 |
|
38 |
80 |
| 400 |
40 |
VKA 43-40/70 |
70,0x14,2 |
41 |
118 |
120 |
|
45 |
100 |
| 400 |
50 |
VKA 43-50/88 |
88,9x17,5 |
54 |
145 |
150 |
|
48 |
109 |
| 400 |
65 |
VKA 43-65/101 |
101,6x20,0 |
62 |
175 |
180 |
|
58 |
135 |
| 400 |
80 |
VKA 43-80/139 |
139,7x28,0 |
83 |
200 |
|
245 |
70 |
150 |
| 400 |
100 |
VKA 43-100/168 |
168,3x32,0 |
104 |
245 |
|
300 |
80 |
190 |
| 400 |
125 |
VKA 43-125/219 |
219,1x45,0 |
129 |
290 |
|
355 |
90 |
190 |
|
|
| |
max.
Be-
triebs-
druck
kg/cm² |
DN |
Typ |
O-Ring |
Schrauben M |
Gewicht
kg |
| Anschlussflansch |
| 400 |
10 |
VKA 43-10/17 |
16,3x2,4 |
4/M10x35 |
0,45 |
| 400 |
16 |
VKA 43-16/26 |
25,3x2,4 |
4/M10x35 |
0,70 |
| 400 |
20 |
VKA 43-20/33 |
29,8x2,6 |
4/M12x35 |
0,90 |
| 400 |
25 |
VKA 43-25/42 |
34,5x2,6 |
4/M12x40 |
1,45 |
| 400 |
32 |
VKA 43-32/60 |
53,3x5,33 |
4/M16x50 |
2,20 |
| 400 |
40 |
VKA 43-40/70 |
61,0x5,0 |
4/M20x60 |
3,20 |
| 400 |
50 |
VKA 43-50/88 |
75,0x5,0 |
4/M24x70 |
5,60 |
| 400 |
65 |
VKA 43-65/101 |
88,0x6,0 |
4/M30x95 |
9,50 |
| 400 |
80 |
VKA 43-80/139 |
115,0x6,0 |
8/M24x100 |
17,60 |
| 400 |
100 |
VKA 43-100/168 |
148,0x7,0 |
8/M30x110 |
29,30 |
| 400 |
125 |
VKA 43-125/219 |
183,5x7,0 |
8/M36x130 |
48,20 |
|
|
| |
max.
Be-
triebs-
druck
kg/cm² |
DN |
Typ |
Abmessungen |
| A |
B |
C |
F |
D |
H |
G |
| Flanschkupplung |
| 400 |
10 |
VKK 41-10/17 |
17,2x3,6 |
10 |
44 |
50 |
|
20 |
80 |
| 400 |
16 |
VKK 41-16/26 |
26,9x5,6 |
16 |
54 |
60 |
|
20 |
94 |
| 400 |
20 |
VKK 41-20/33 |
33,7x6,3 |
21 |
64 |
70 |
|
20 |
106 |
| 400 |
25 |
VKK 41-25/42 |
42,4x8,0 |
26 |
72 |
80 |
|
25 |
122 |
| 400 |
32 |
VKK 41-32/60 |
60,3x12,5 |
35 |
98 |
100 |
|
38 |
130 |
| 400 |
40 |
VKK 41-40/70 |
70,0x14,2 |
41 |
118 |
120 |
|
45 |
190 |
| 400 |
50 |
VKK 41-50/88 |
88,9x17,5 |
54 |
145 |
150 |
|
48 |
210 |
| 400 |
65 |
VKK 41-65/101 |
101,6x20,0 |
62 |
175 |
180 |
|
58 |
262 |
| 400 |
80 |
VKK 41-80/139 |
139,7x28,0 |
83 |
200 |
|
245 |
70 |
292 |
| 400 |
100 |
VKK 41-100/168 |
168,3x32,0 |
104 |
245 |
|
300 |
80 |
372 |
| 400 |
125 |
VKK 41-125/219 |
219,1x45,0 |
129 |
290 |
|
355 |
90 |
391 |
|
|
| |
max.
Be-
triebs-
druck
kg/cm² |
DN |
Typ |
O-Ring |
Schrauben M |
Gewicht
kg |
| Flanschkupplung |
| 400 |
10 |
VKK 41-10/17 |
16,3x2,4 |
4/M10x55 |
0,81 |
| 400 |
16 |
VKK 41-16/26 |
25,3x2,4 |
4/M10x60 |
1,21 |
| 400 |
20 |
VKK 41-20/33 |
29,8x2,6 |
4/M12x60 |
1,70 |
| 400 |
25 |
VKK 41-25/42 |
34,5x2,6 |
4/M12x70 |
2,70 |
| 400 |
32 |
VKK 41-32/60 |
53,3x5,33 |
4/M16x80 |
4,15 |
| 400 |
40 |
VKK 41-40/70 |
61,0x5,0 |
4/M20x110 |
6,25 |
| 400 |
50 |
VKK 41-50/88 |
75,0x5,0 |
4/M24x120 |
10,80 |
| 400 |
65 |
VKK 41-65/101 |
88,0x6,0 |
4/M30x130 |
18,35 |
| 400 |
80 |
VKK 41-80/139 |
115,0x6,0 |
8/M24x170 |
33,80 |
| 400 |
100 |
VKK 41-100/168 |
148,0x7,0 |
8/M30x200 |
57,20 |
| 400 |
125 |
VKK 41-125/219 |
183,5x7,0 |
8/M36x220 |
95,00 |
|
|
Änderungen vorbehalten! |
|
|
|
|
|
